OUR PRODUCTS
Black Annealed | 0.250″ to 0.023″
Galvanized | 0.312″ to 0.017″
Stainless Steel Annealed | 0.250″ to 0.020″
Stainless Steel Spring | 0.250″ to 0.012″
Stainless Steel Lock Wire | 0.105″ to 0.020″
Music/Hard Drawn | 0.250″ to 0.016″
Oil Tempered | 0.393″ to 0.072″
Brass | 0.064″ to 0.032″
Copper | 0.065″ to 0.013″
Aluminum | 0.250″ to 0.041″
Flat Spring Wire (available upon request)
Spring Wire (available upon request)
Western Steel & Wire gives you immediate access to the most diverse inventory of bare wire in Northern California.
Wire Straightening, Cutting + Bending

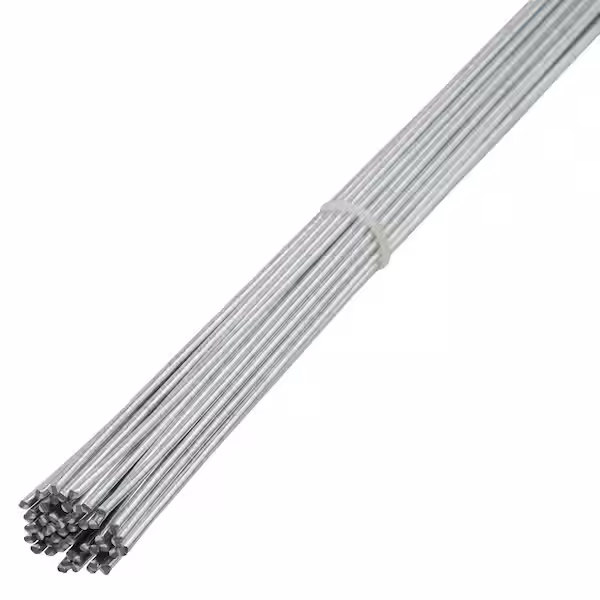

For manufacturers, medical devices (mandrels), concrete reinforcement, artificial Christmas trees and decorations, suspended ceilings, suspension wire, mattress springs, roll up doors, etc.

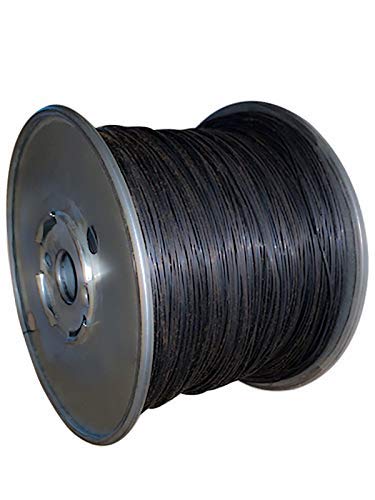

Coils + Spools

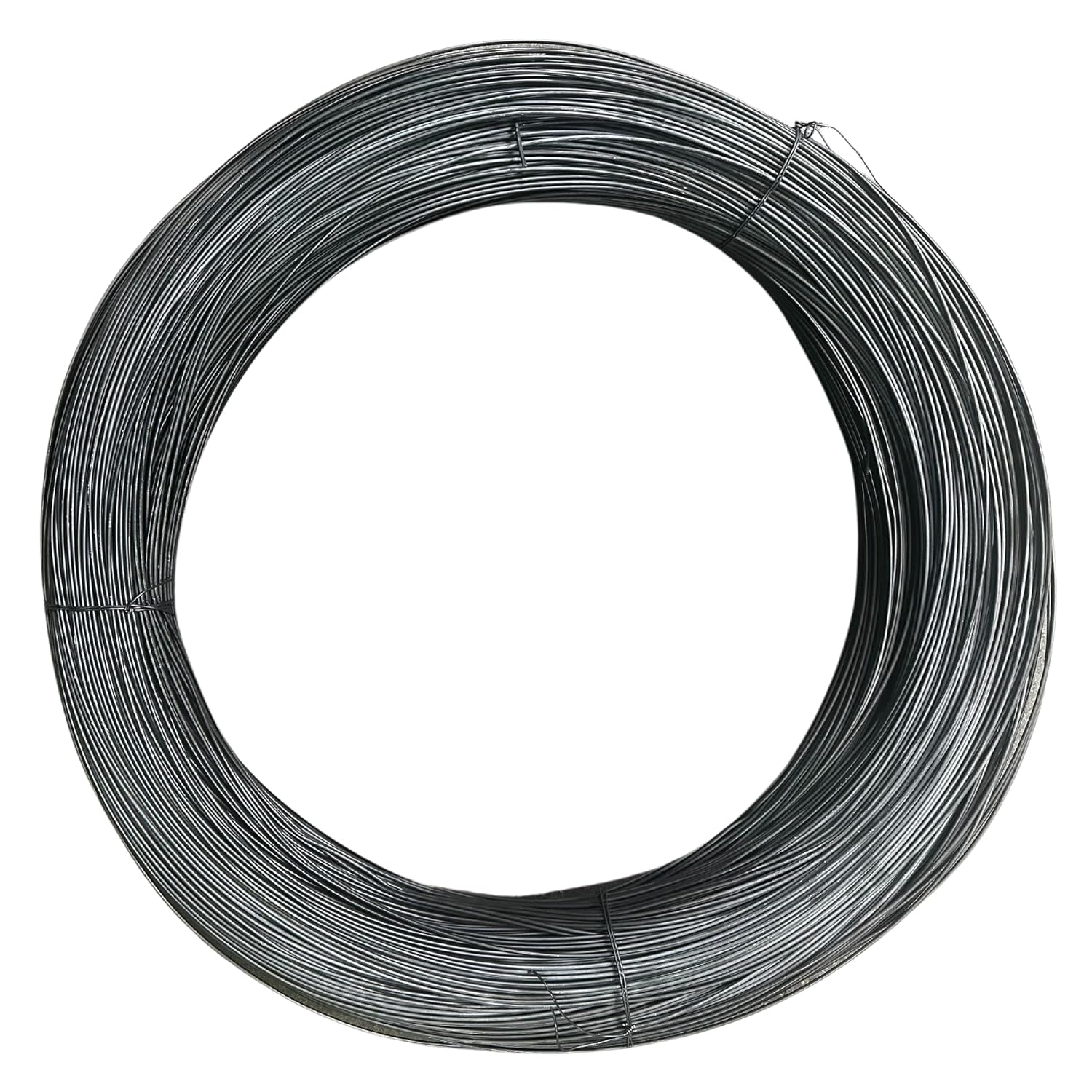

For the building industry, scaffold tie wire, rebar tie wire, tradeshow displays, seizing wire, exposition rigging, etc.
Bale + Bag Ties
For industry, recycling, agriculture
Centerless Grinding
- Thru Feed
- +/- .0002″ Tolerance
- .040″ to 1″ OD
- Lengths up to 20′
Sign Stakes
For supporting corrugated plastic signs used for political campaigns, open house, real estate, rent, for sale, garage sales, etc.
- H Frame
- Single Stakes
- Sign Connector Supports

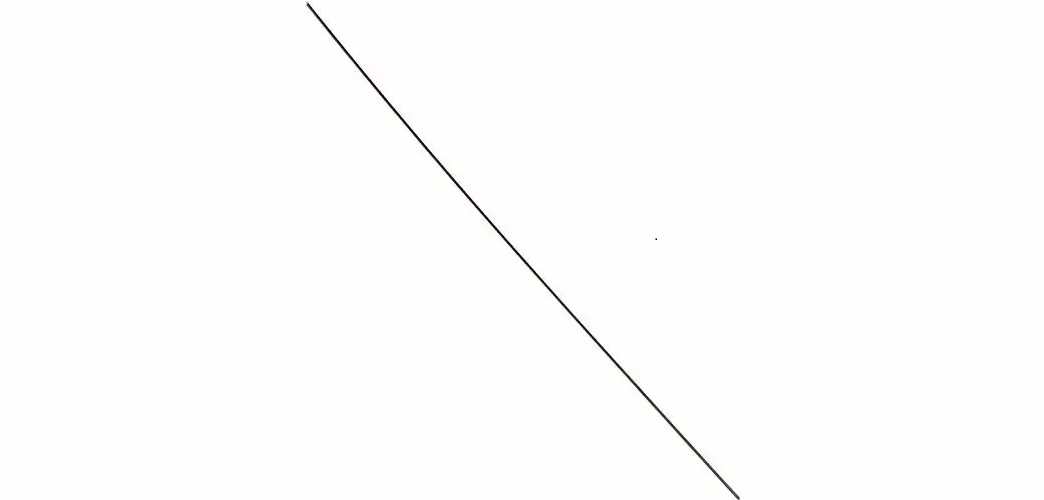

Insulation Supports
For securing roll and batt type insulation between 16 and 24-inch wood joists.
- Fast Turnaround
- High Mix, Low Volume
- Engineering Prototype & NPI
- Post Manufacture Cleaning
- Packaging
- Freight Management
- Domestic & International Shipping
STEEL WIRE GAUGE CHART
Click to see Metal Weight Calculator.
GAUGE | DECIMAL | FT/LB |
---|---|---|
5/0 | .4305 .421 .412 .403 |
2.023 |
4/0 | .3938 .386 .378 .370 |
2.418 |
3/0 | .3625 .355 .347 .339 |
2.853 |
2/0 | .331 .325 .319 .313 |
3.422 |
1/0 | .3065 .301 .295 .289 |
3.991 |
1 | .283 .278 .273 .268 |
4.681 |
2 | .2625 .258 .253 .248 |
5.441 |
3 | .2437 .239 .235 .230 |
6.313 |
4 | .2253 .221 .216 .212 |
7.386 |
5 | .207 .203 .200 .196 |
8.750 |
6 | .192 .188 .185 .181 |
10.17 |
GAUGE | DECIMAL | FT/LB |
---|---|---|
7 | .177 .173 .170 .166 |
11.97 |
8 | .162 .159 .155 .152 |
14.29 |
9 | .1483 .145 .142 .138 |
17.05 |
10 | .135 .131 .128 .124 |
20.57 |
11 | .1205 .117 .113 .109 |
25.82 |
12 | .1055 .102 .099 .095 |
33.69 |
13 | .0915 .089 .086 .083 |
44.78 |
14 | .080 .078 .076 .074 |
58.58 |
15 | .072 .070 .067 .065 |
72.32 |
16 | .0625 .060 .058 .056 |
95.98 |
17 | .054 .052 .051 .0491 |
128.6 |
GAUGE | DECIMAL | FT/LB |
---|---|---|
18 | .0475 .0459 .0443 .0426 |
166.2 |
19 | .0410 .0394 .0379 .0363 |
223.0 |
20 | .0348 .0340 .0332 .0325 |
309.6 |
21 | .0317 .0309 .0301 .0294 |
373.1 |
22 | .0286 .0279 .0272 .0265 |
458.4 |
23 | .0258 .0251 .0244 .0237 |
563.3 |
24 | .0230 .0224 .0217 .0211 |
708.7 |
25 | .0204 .0198 .0193 .0187 |
900.9 |
26 | .0181 .0179 .0177 .0175 |
1144 |
27 | .0173 .0170 .0168 .0165 |
1253 |
28 | .0162 .0159 .0156 .0153 |
1429 |
