Wire

Bright Basic Stailess Steel Annealed Music Wire (Piano)
Black Annealed Stainless Steel Spring Oil Tempered
Galvanized Aluminum Copper

Services

  • Wire Distribution
    • Coils, Straight Lengths, Stands and Spools

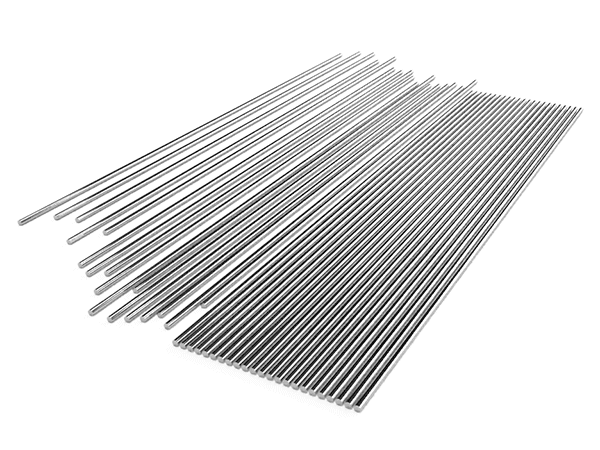

  • Straighten and Cut
    • Wire, .023” to .250” OD
    • 2” to 40’ in length
    • Straighten tolerance: .005”/ft
    • Diameter Tolerance: .035” to <.076” = +/-.001, .076” to <.500” = +/-.002, >.500” = +/-.003”
    • Length Tolerance: < 3’ = +/- 1/16”; 3 – 12’ = +/- 3/32”; > 12’ = +/- 1/8”

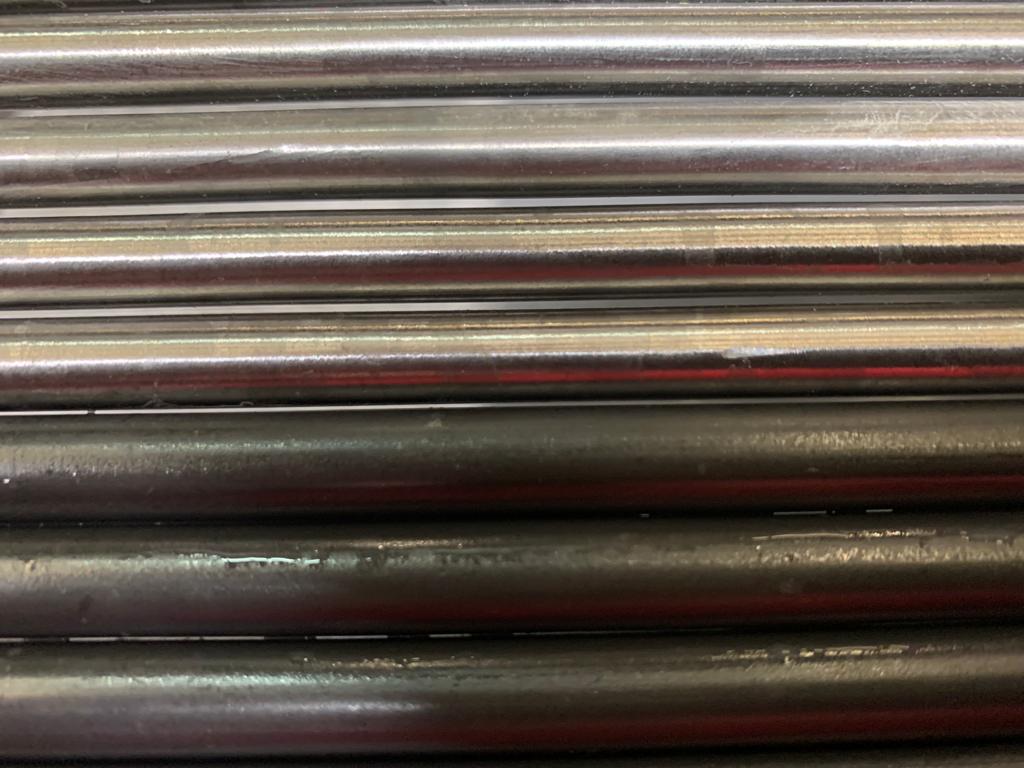

  • Centerless Grinding
    • Thru Feed: .020” to 2.0” OD, +/- .0002”, 6” to 15’ in length, 16 Ra finish or better
    • End Feed: .030” to .600” OD, +/-.0002”, 1” to 12”
  • Spooling/Coiling
    • Wire: Black Annealed, Galvanized, Stainless Steel Annealed
    • 14 to 22 gauge
    • 1 lb to 25 lbs, 3.5 lb coils

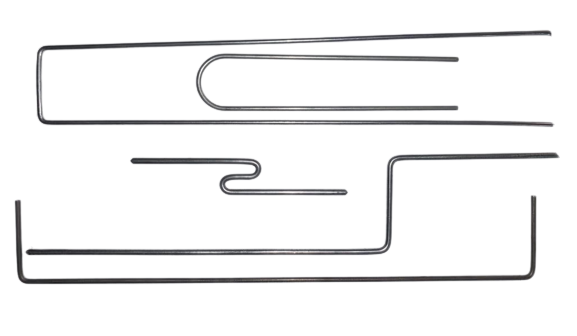

  • Bending
    • Simple, complex, CNC

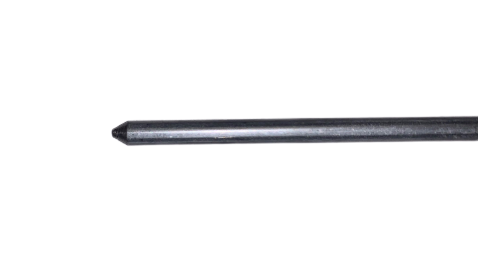

  • Grinding
    • Rounding, debur, tip pointing, tapering, edge breaking, chamfering, buffing

Products

  • Scaffolding Tie Wire:
    • 100 lb coils, Black Annealed, 9 to 12 gauge
  • Bale Ties:
    • Single Loop or Straight. Black Annealed or Galvanized, 10 to 15 gauge, 7’ to 25’

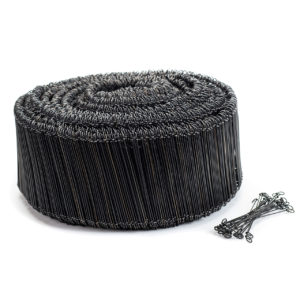

  • Bag Ties:
    • Black Annealed, Galvanized, SS Annealed, Coppered, 13 – 19 gauge, 3” to 30”
  • Cal Tie (rebar):
    • 3.5 lb coils, Black Annealed, Galvanized, SS Annealed, 14 to 20 gauge

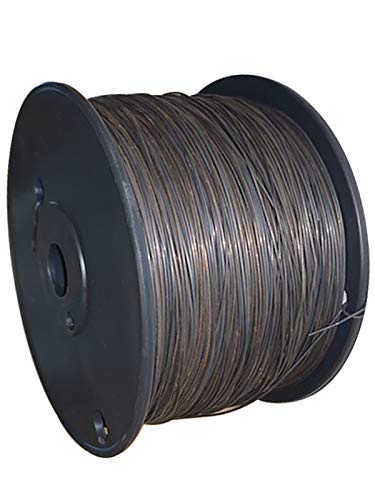

  • Tie Wire Spools:
    • 5 lb spools, Black Annealed, Galvanized, SS Annealed, 14 to 20 gauge, metal or plastic spools
  • Insulation Supports:
    • 16” and 24”

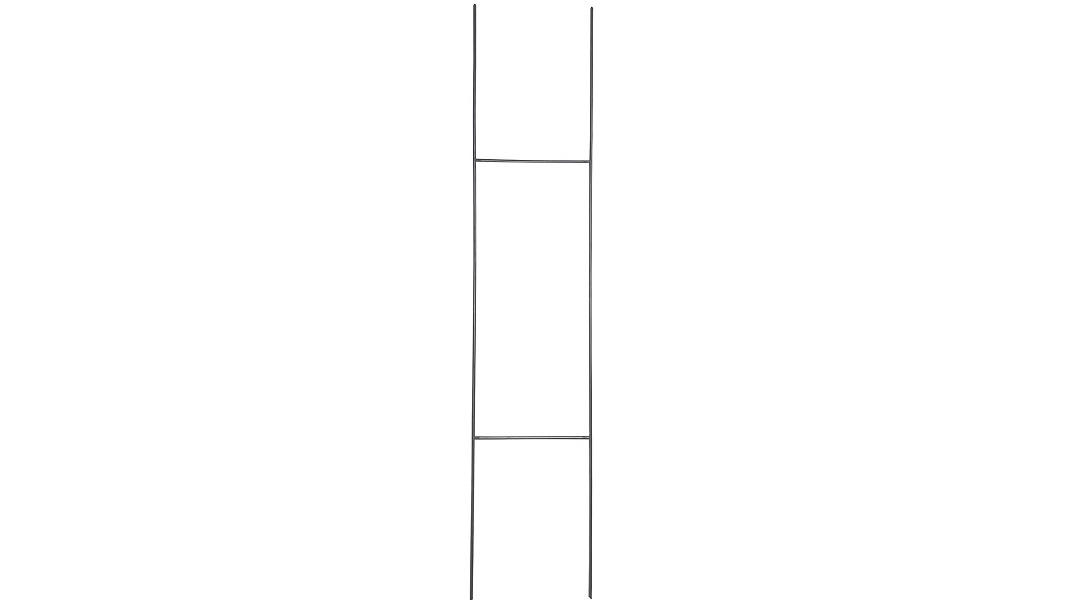

  • H Frame Sign Stakes:
    • 6” x 30”, 10” x 30” with angle tips and rounded ends

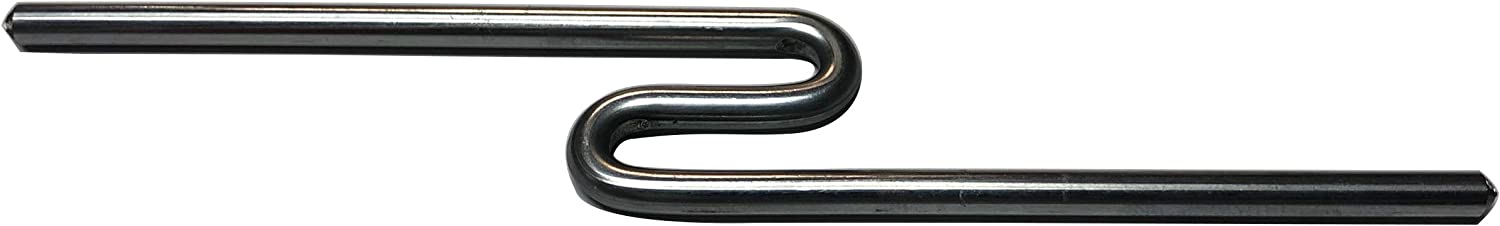

  • Layering Pin Sign Stakes
    • Vertical fastener for stacking two or more yard signs on top of each other.
  • S&L Sign Stakes:
    • 12”, 24” and 30”

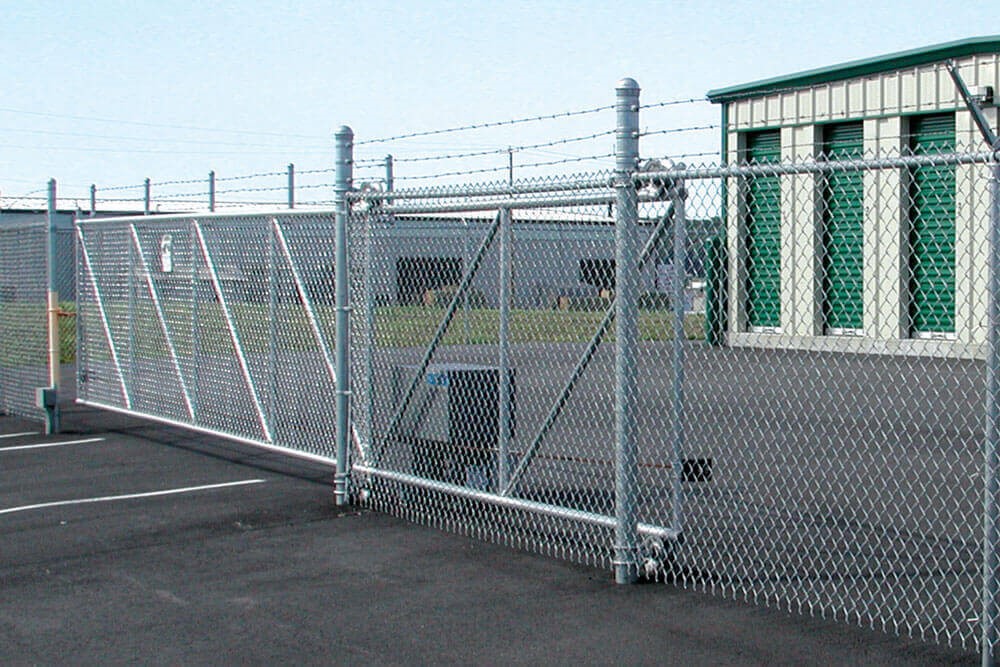

  • Fences and Gates
    • Commercial or residential
Check out Amazon for many of our products. For Volume and Custom orders, please contact us directly.

Serving ALL of Your Wire Needs Since 1932

Shipping Locally, Domestically & Internationally

We Do Not Carry Cable, Stranded or Electrical Wire

We Accept

Western Steel & Wire, Inc. | 415.822.5490 | www.WesternSteelWire.com | sales@westernsteelwire.com

STRAIGHT & CUT 0.025 - 0.375 inch diameter
2inch - 40 feet length

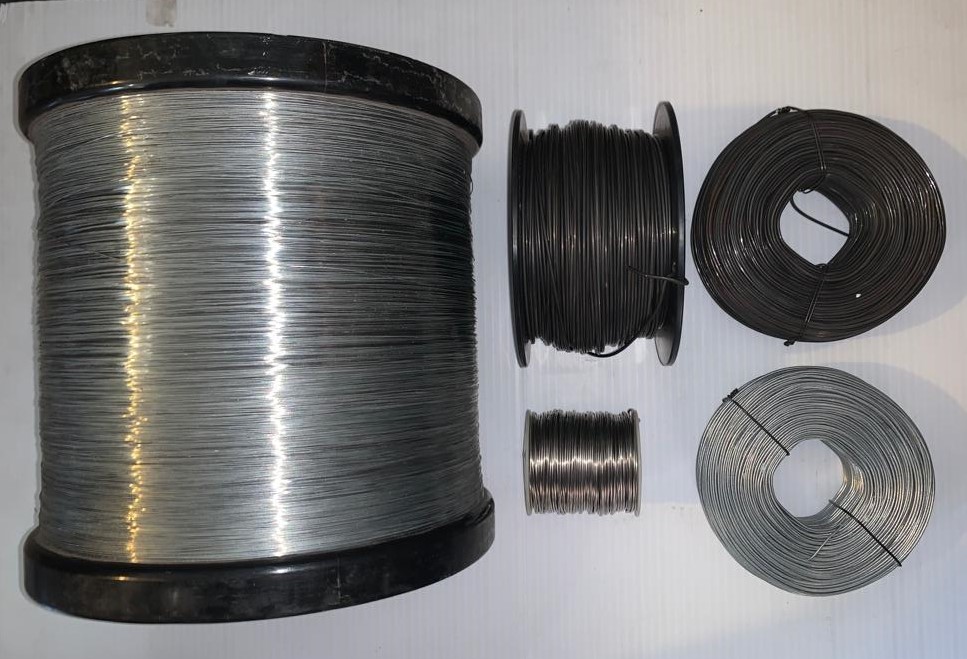

SPOOLS All Types of Wire 1-450 lbs
Plastic, metal and wood spools available

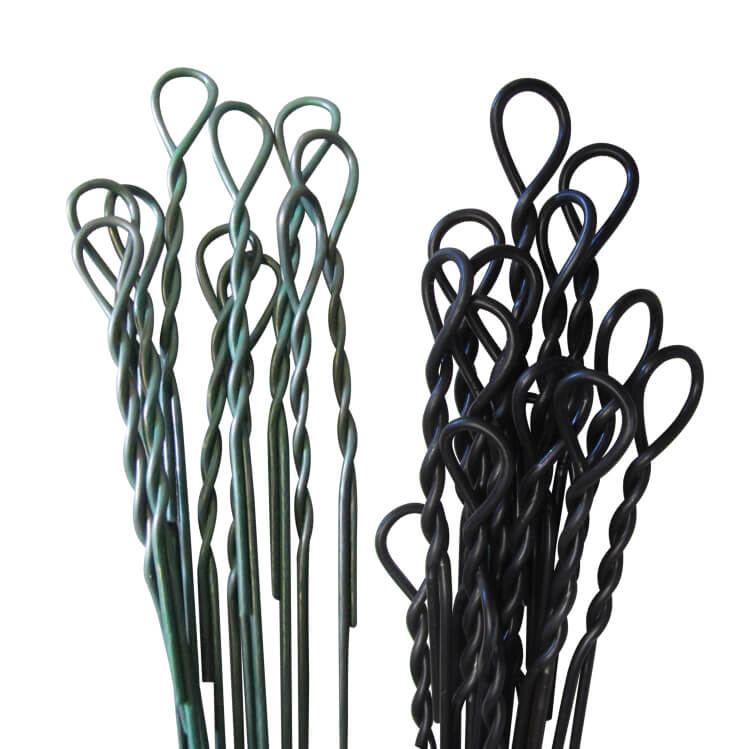

BAG TIES Galvanized & Black Annealed
Single & Double Looped
Stainless Steel & PVC Coated
Single & Double Looped Bag Ties, 13 to 19 gauge, 3 to 36 Inch Lengths
BALE TIES Galvanized & Black Annealed
Straight & Single Looped Bale Ties, 10 to 15 gauge, 7 to 21 Foot Lengths
SPECIALTY TIE WIRE COILS Similar to Rebar Tie Wire
Black Annealed, Galvanized, Stainless, Copper Cal-Tie Coils:
3 1/2 lbs Each
14 – 20 gauge
COILS BY WEIGHT OR FOOTAGE 1 – 2000 lbs

STEEL WIRE GAUGE CHART

Please reference this chart when placing a request for black annealed, bright basic, stainless and galvanized wire on the Contact Page.
Chart is not for copper, brass or aluminum.Click to see Metal Weight Calculator.


GAUGE

DECIMAL

FT/LB

5/0

.4305.421
.412.403

2.023

4/0

.3938.386
.378.370

2.418

3/0

.3625.355
.347.339

2.853

2/0

.331.325
.319.313

3.422

1/0

.3065.301
.295.289

3.991

1

.283.278
.273.268

4.681

2

.2625.258
.253.248

5.441

3

.2437.239
.235.230

6.313

4

.2253.221
.216.212

7.386

5

.207.203
.200.196

8.750

6

.192.188
.185.181

10.17

GAUGE

DECIMAL

FT/LB

7

.177.173
.170.166

11.97

8

.162.159
.155.152

14.29

9

.1483.145
.142.138

17.05

10

.135.131
.128.124

20.57

11

.1205.117
.113.109

25.82

12

.1055.102
.099.095

33.69

13

.0915.089
.086.083

44.78

14

.080.078
.076.074

58.58

15

.072.070
.067.065

72.32

16

.0625.060
.058.056

95.98

17

.054.052
.051.0491

128.6

GAUGE

DECIMAL

FT/LB

18

.0475.0459
.0443.0426

166.2

19

.0410.0394
.0379.0363

223.0

20

.0348.0340
.0332.0325

309.6

21

.0317.0309
.0301.0294

373.1

22

.0286.0279
.0272.0265

458.4

23

.0258.0251
.0244.0237

563.3

24

.0230.0224
.0217.0211

708.7

25

.0204.0198
.0193.0187

900.9

26

.0181.0179
.0177.0175

1144

27

.0173.0170
.0168.0165

1253

28

.0162.0159
.0156.0153

1429
